MEP Snagging Inspection DubaiCertified Testing Before You Accept Handover
Paint and tiles are easy to check on handover day. Wiring inside the wall, the airflow at your AC vents, and the water pressure at your taps are not. Our MEP snagging inspection tests every mechanical, electrical, and plumbing system in your Dubai property with calibrated equipment, before you sign anything.
Same or next day appointments across Dubai. Reports delivered within 24 hours.
2 of 4 readings need developer rectification
What You Get From a Certified MEP Inspection in Dubai
Engineers, Not Generalists
Every MEP inspection is carried out by engineers trained specifically in mechanical, electrical, and plumbing systems, not a general property surveyor doing a walkthrough.
Test Data, Not Guesswork
We measure voltage, airflow, water pressure, and moisture with calibrated tools, so every finding in your report is a number, not an opinion.
Report Within 24 Hours
You receive a photo backed, developer ready MEP report the day after inspection, formatted for direct submission to Emaar, DAMAC, Nakheel, and other developers.
Fully Independent
We hold no contract with any developer or contractor. Our only job is to document what we find and hand you the leverage to get it fixed.
Why MEP Inspection Dubai Buyers Book Before Handover
Structural cracks and paint defects are visible. A loose earth connection inside your distribution board is not. Neither is a plumbing joint under a bathroom sink that only starts leaking three months after you move in, or an AC unit that runs constantly without ever hitting your set temperature.
These are mechanical, electrical, and plumbing faults, and in our inspection records they account for a large share of the defects buyers discover after they have already accepted the keys. Once you sign the handover documents, the property is legally yours in its current condition. A snagging report produced before that signature is what gives you standing to ask the developer to fix these systems at their cost, inside the defect liability period, instead of yours.
An MEP snagging inspection focuses only on these three systems, mechanical, electrical, and plumbing, and goes deeper into each one than a general walkthrough ever could, because these are the systems that are hardest to check yourself and most expensive to repair once you own the problem.
What Comes Under MEP Services in a Dubai Property Inspection
MEP stands for mechanical, electrical, and plumbing, the three building systems that have to work together for a property to be safe and livable. Here is exactly what falls under each system during our inspection.
- Mechanical (HVAC): AC units, airflow at every supply vent, duct insulation and leakage, condensation drainage, thermostat calibration, and outdoor condenser noise levels.
- Electrical: Every power socket, light switch, and lighting circuit, the distribution board and MCBs, earthing and grounding, socket polarity, and visible or concealed wiring faults.
- Plumbing: Water supply pressure, hot and cold water lines, drainage gradient at every waste outlet, water heater performance, taps, showers, and traps.
- Moisture and leak detection: Concealed leaks behind walls, under sinks, and at washing machine connections, checked with a calibrated moisture meter.
- Ventilation: Kitchen and bathroom extraction, duct routing, and airflow volume against the unit’s design specification.
- Gas and safety connections: Where present, checked for correct installation and secure fittings.
Specialist MEP Inspection vs a Standard Snagging Walkthrough
Not every snagging company tests MEP systems with equipment. Many rely on a visual walkthrough alone, which misses the faults that cost the most to repair.
| What Is Checked | MEP Specialist Inspection | Standard Visual Snagging |
|---|---|---|
| Electrical socket testing | Live, neutral, and earth tested at every point | Visual check only, sockets rarely tested |
| DB board and MCBs | Load and function tested | Usually not opened |
| AC airflow | Measured in m³/h with anemometer | Felt by hand, not measured |
| Water pressure | Measured in bar at each outlet | Taps turned on, not measured |
| Hidden moisture | Checked with calibrated moisture meter | Not checked unless visible |
| Report format | Test values plus photo evidence | General condition notes |
MEP Snagging Inspection Cost in Dubai
Figures below are estimates for a standalone MEP inspection. Final cost depends on property size, number of AC units, and number of wet rooms to be tested.
| Property Type | Size Range | Estimated Cost |
|---|---|---|
| Studio / 1BR Apartment | Up to 750 sq ft | AED 500 to 750 |
| 2BR Apartment | 750 to 1,400 sq ft | AED 750 to 1,100 |
| 3BR Apartment | 1,400 to 2,200 sq ft | AED 1,100 to 1,500 |
| Townhouse | 2,200 to 3,500 sq ft | AED 1,600 to 2,200 |
| Villa (standard) | 3,500 to 6,000 sq ft | AED 2,200 to 3,200 |
| Villa (large) | 6,000 sq ft+ | From AED 3,200 |
How an MEP Inspection Works, Start to Finish
Book Your Slot
Call or WhatsApp us with your property location and handover date. Same or next day appointments are available across Dubai.
On Site Testing
Our engineer tests every socket, the DB board, airflow at each vent, water pressure, and drainage. An apartment takes 2 to 3 hours, a villa 4 to 6.
Detailed Report
Within 24 hours you receive a report with test values, photo evidence, and severity ratings, formatted for developer submission.
De-Snagging Check
Once the developer completes repairs, we return to retest the same systems and confirm the fault is actually resolved, not just visually patched.
MEP Inspection Services We Provide Across Dubai

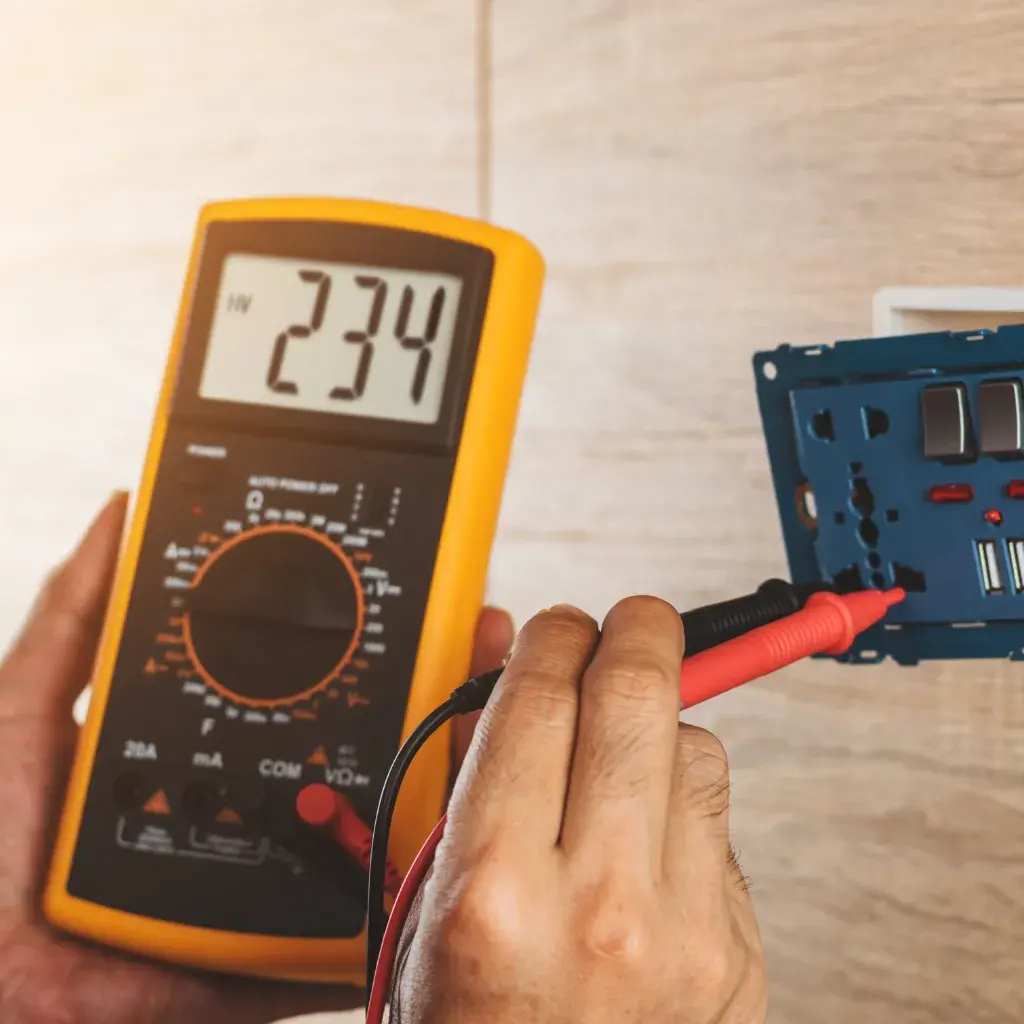

Electrical System Inspection

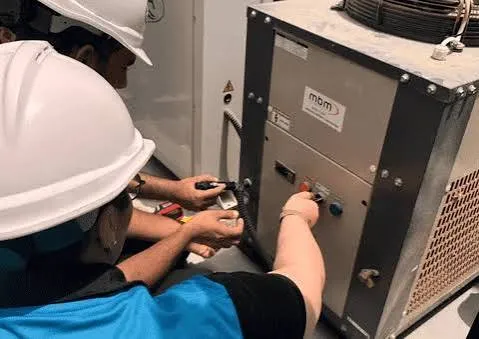

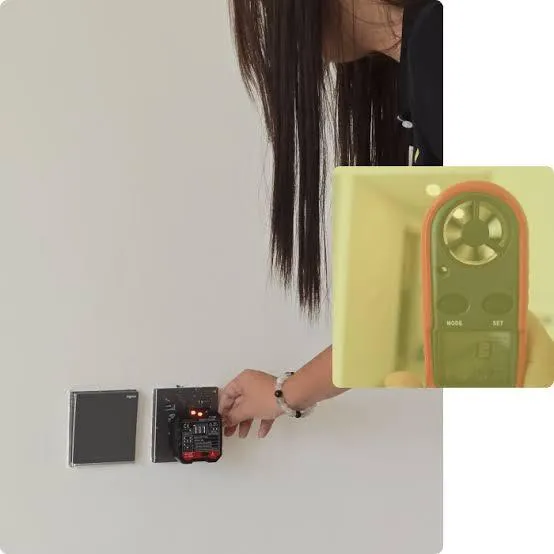

We test every power socket for live, neutral, and earth connections, check lighting circuits, and open the distribution board to confirm each MCB functions and is correctly labelled. In new builds across JVC and Dubai South, we most often find electrical faults at socket outlets and junction boxes behind fixtures, not at the main supply.

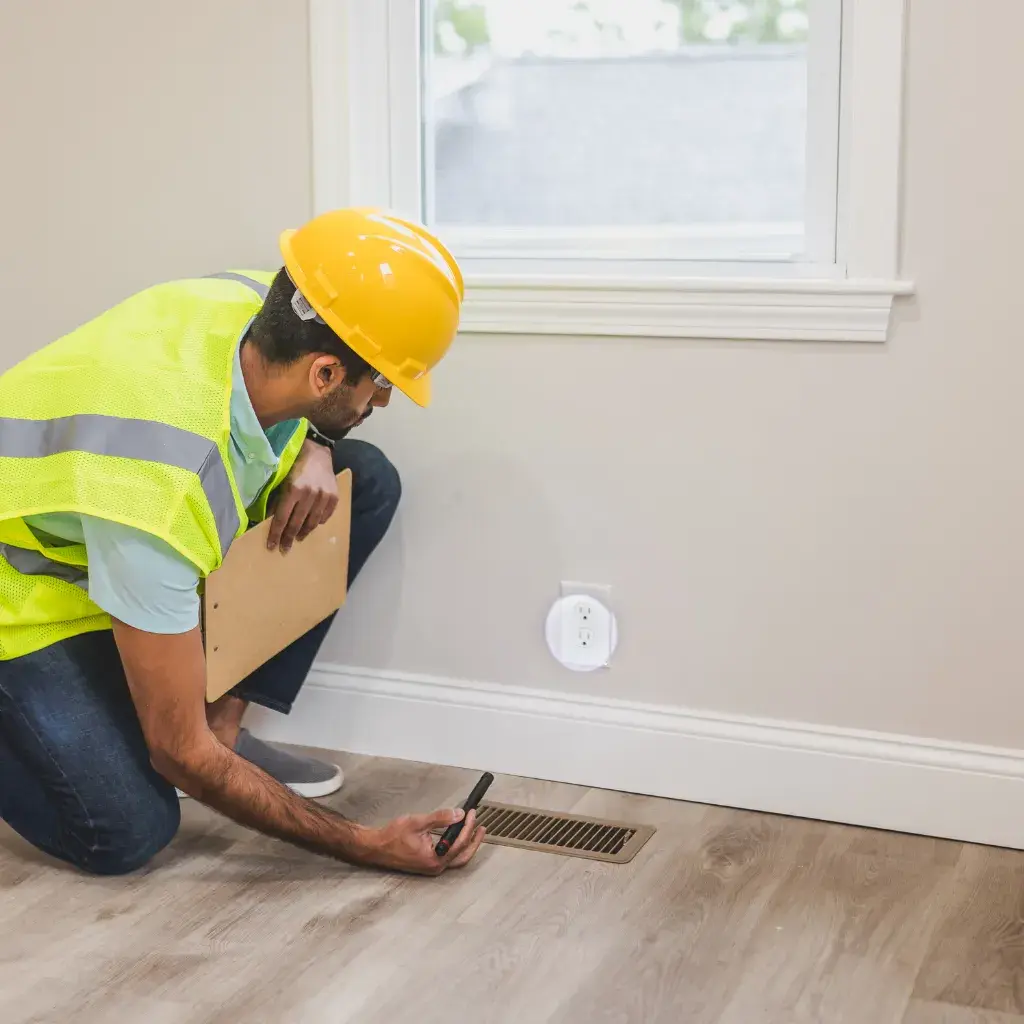

Mechanical and HVAC Inspection

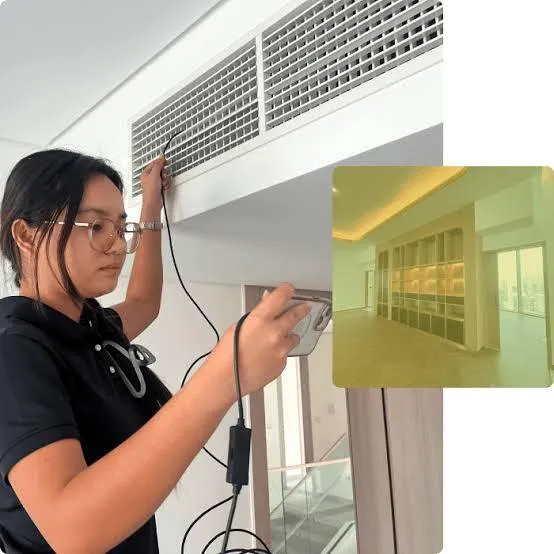

Using a digital anemometer, we measure airflow at every AC vent against the unit’s design specification, check condensation drainage, and test thermostat accuracy. Towers along Sheikh Zayed Road and Dubai Marina, where units run near constantly through summer, are where we see the highest rate of underperforming AC systems.

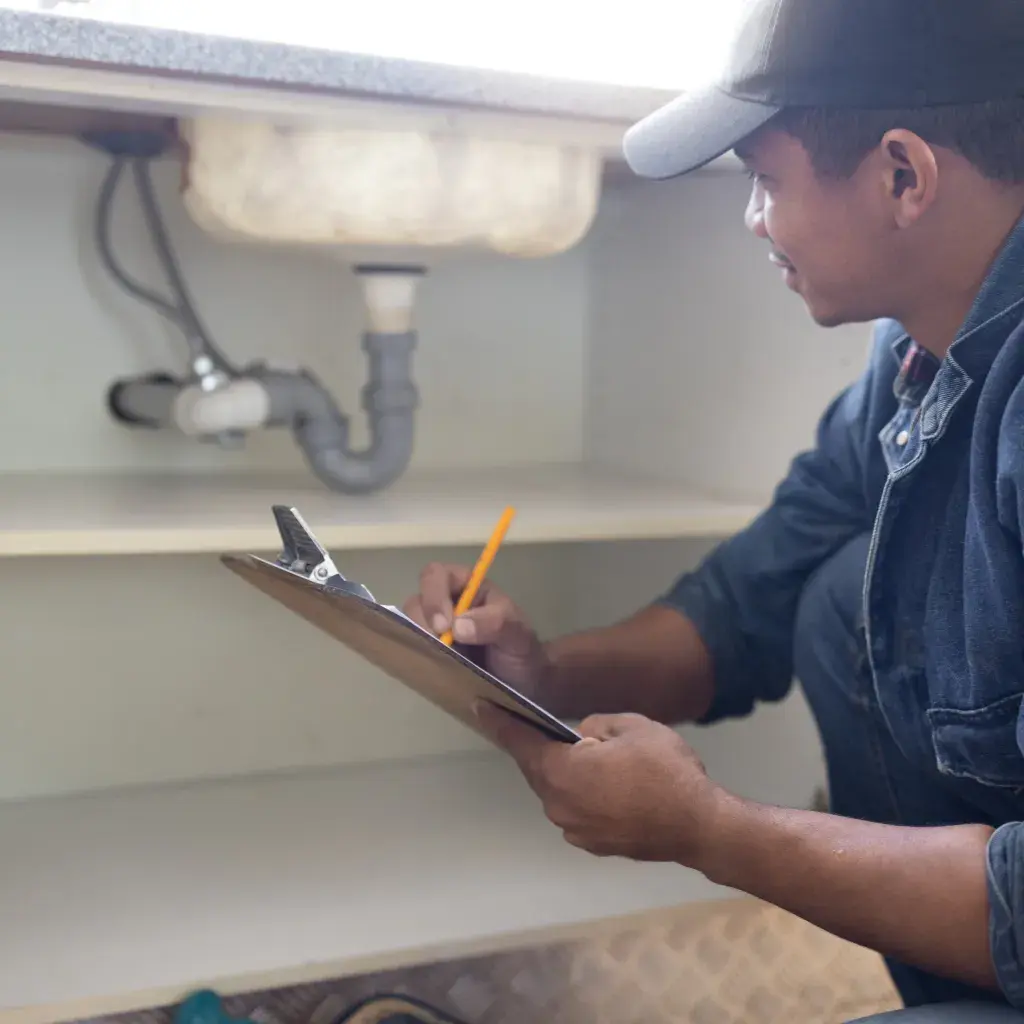

Plumbing Inspection

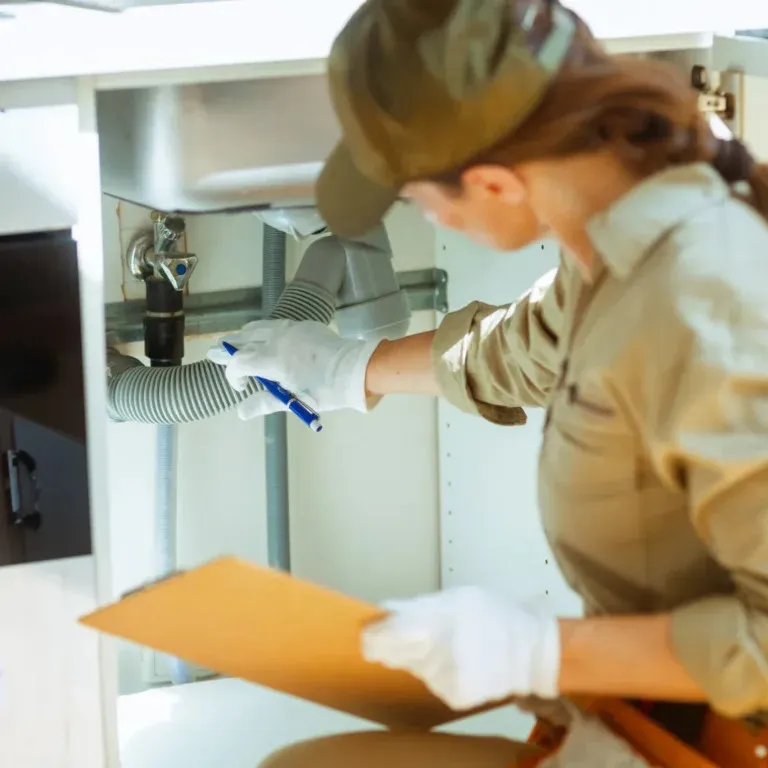

We check water pressure at every outlet, run each tap and flush every toilet, and inspect drainage gradient at waste outlets. A calibrated moisture meter checks under sinks and behind bathroom walls for leaks that have not yet become visible, a common issue in ground floor units and properties close to the waterways in Business Bay and Dubai Marina.
Dubai’s Climate and the MEP Faults We See Because of It
Dubai’s weather is not background noise for MEP systems, it is one of the reasons inspections matter so much here. These are the patterns we see most often, tied directly to the local environment.
Peak Heat and AC Strain
Outdoor temperatures above 45°C push AC systems to run near continuously. Units with undersized ductwork or low refrigerant struggle to hit set temperature, and this is when weak airflow shows up most clearly on an anemometer reading.
Humidity in Marina and JBR Towers
Units in Dubai Marina, JBR, and other waterfront buildings sit close to high humidity air off the Gulf. This raises the risk of condensation inside ducts and moisture behind bathroom walls, which is why we always run a moisture check in these areas even when nothing looks wrong.
Winter Rain and Drainage Testing
Dubai’s short rainy season is when poor terrace and balcony drainage gets exposed. A flat roof or terrace with the wrong drainage gradient can pool water for hours after a storm, which is why drainage slope is part of every plumbing check.
DEWA Load and Voltage Checks
During the hottest months, electricity demand across Dubai rises sharply as every AC system runs at once. Testing voltage at the distribution board tells us whether a unit’s electrical setup can handle that peak load without tripping breakers or overheating connections.
Recent MEP Inspection Findings Across Dubai
Airflow at 40% of Spec
Anemometer readings at two of four AC vents came in well below the design specification. The developer traced it to a crushed duct section behind the ceiling and replaced it before handover.
Earthing Fault at Main DB
Socket testing across the villa flagged an earth continuity failure on one circuit. Tracing it back to the distribution board found a loose earth bar connection, corrected under the defect liability period.
Low Water Pressure, Kitchen Line
Pressure reading at the kitchen tap came in under 1 bar, well below livable range. The cause was a partially closed isolation valve left from installation, an easy fix once documented in the report.
Property Owners on Our MEP Snagging Reports
“The airflow readings on our AC report gave us something concrete to hand the developer. No argument, just numbers on a page.”
“I did not expect them to open the DB board. Glad they did, the earthing fault would have taken months to notice otherwise.”
“Clear report, delivered the next morning as promised. The water pressure test alone was worth booking the inspection.”
Placeholder quotes shown for layout. Replace with verified client reviews and, where possible, full names before publishing, see our case studies for detailed write ups.
MEP Inspection and Snagging Questions Answered
What is snagging in Dubai?
Snagging is the process of inspecting a newly built or recently handed over property to find defects and unfinished work before the buyer formally accepts it from the developer.
What does MEP stand for?
MEP stands for mechanical, electrical, and plumbing, the three core building systems that keep a property safe, comfortable, and functional.
What comes under MEP services?
MEP services cover HVAC and air conditioning, all electrical wiring, sockets, and the distribution board, and all plumbing including water supply, drainage, and water heaters. It also includes ventilation and, where present, gas connections.
What does snagging mean in real estate?
In real estate, snagging means documenting every fault in a property before the buyer signs off on handover, so the developer is contractually responsible for fixing it rather than the new owner.
Why choose our MEP inspection in Dubai?
Our engineers test with calibrated equipment rather than relying on a visual walkthrough, deliver reports within 24 hours, and return for a free de-snagging check once the developer completes repairs.
What is MEP inspection and why does it matter in Dubai?
An MEP inspection tests a property’s mechanical, electrical, and plumbing systems for correct installation and safe operation. In Dubai, where AC systems run for most of the year and buildings are handed over on tight construction schedules, these are the systems most likely to hide expensive faults.
Is MEP different from HVAC?
HVAC is part of MEP, not separate from it. HVAC covers heating, ventilation, and air conditioning, and sits inside the mechanical portion of an MEP inspection alongside electrical and plumbing systems.
Is MEP a civil engineering discipline?
No, MEP is its own engineering discipline, separate from civil and structural engineering. Civil engineers focus on the building’s structure, while MEP engineers focus on the systems that run through it.
What is EPC in quality and construction?
EPC stands for Engineering, Procurement, and Construction, a project delivery model where one contractor handles design, sourcing materials, and building the project. It is a project structure, not an inspection type.
What is AEC and how does it relate to MEP?
AEC stands for Architecture, Engineering, and Construction, the broader industry that MEP work sits inside. MEP is one of the engineering disciplines within the AEC field, alongside structural and civil engineering.
Are BIM and MEP the same thing?
No. BIM, Building Information Modelling, is a digital design and coordination process. MEP is a set of building systems. BIM is often used to plan and coordinate MEP installations before construction begins, but the two terms are not interchangeable.
Which is better, CAD or BIM?
They serve different purposes. CAD produces flat 2D or 3D drawings, while BIM builds a data rich model that tracks how systems like MEP interact across the whole building. Most large Dubai developments now use BIM for MEP coordination because it catches clashes between systems before construction starts.
What are 4D, 5D, 6D, and 7D in BIM?
These describe added layers of data in a BIM model. 4D adds construction scheduling, 5D adds cost information, 6D adds energy and sustainability data, and 7D adds facility management data used after the building is complete.
Book Your MEP Snagging Inspection in Dubai
Same or next day appointments across Dubai, Abu Dhabi, Sharjah, and Ras Al Khaimah. Reports delivered within 24 hours, with a free de-snagging check once repairs are done.
Also available: DLP Snagging Inspection, Pre-Handover Snagging, and coverage in JVC, Jebel Ali Village, Abu Dhabi, Sharjah, Ras Al Khaimah, and Ajman. Learn more about our inspection process, read Dubai inspection laws, or see full pricing and about us.
